| Operating Weight | 3790 – 4130 Kg |
| Bucket Capacity | 0.11 m3 GP |
| Size | – |
| Emission | – |
| Engine model | Kubota D1703 |
| Gross power (PS) | 25.2 PS @ 2200 rpm |
| Max. Torque | 9.9 kg f.m (72 lbf.ft) @ 1320 rpm |
| Main pumps rated flow | 2 × 37.4 ℓ/min + 23 ℓ/min |
| Sub pump for pilot circuit | Gear Pump |
| Boom length | 2.4m (7’10”) |
| Arm length | 1.3m |
| Max. Digging reach | 5.17 m |
| Max.Digging depth | 2,980 mm |
| Max. Digging Height | 4,820 mm |
| Max. Dumping Height | 3,415 |
| Min. Swing radius | 2,350 mm |
| Swing motor | Axial piston motor |
| Swing speed | 9.4 rpm |
| Travel speed, high/ low | 4.4/ 2.6 km/h |
| Max. Traction force | 3039 kgf (29.8kN) |
| Max. gradeability | 35 deg |
| Max. digging reach on ground | 5460 mm |
| Max. digging depth | 3280 mm |
| Bucket Digging Force | 3281 kgf |
| Arm crowd force | 2025 kgf |
| Overall length | 4,783 mm |
| Overall width | 1,740 mm |
| Overall width of upper structure | 1,540 mm |
| Overall height of Cab | 2,505 mm |
| Tail swing radius | 900 mm |
| Tumbler distance | 1,680 mm |
| Min. Ground clearance | 167 mm |
| Fuel tank | 46.8 ℓ |
| Hydraulic tank | 36 ℓ |
| Hydraulic System | 63 ℓ |

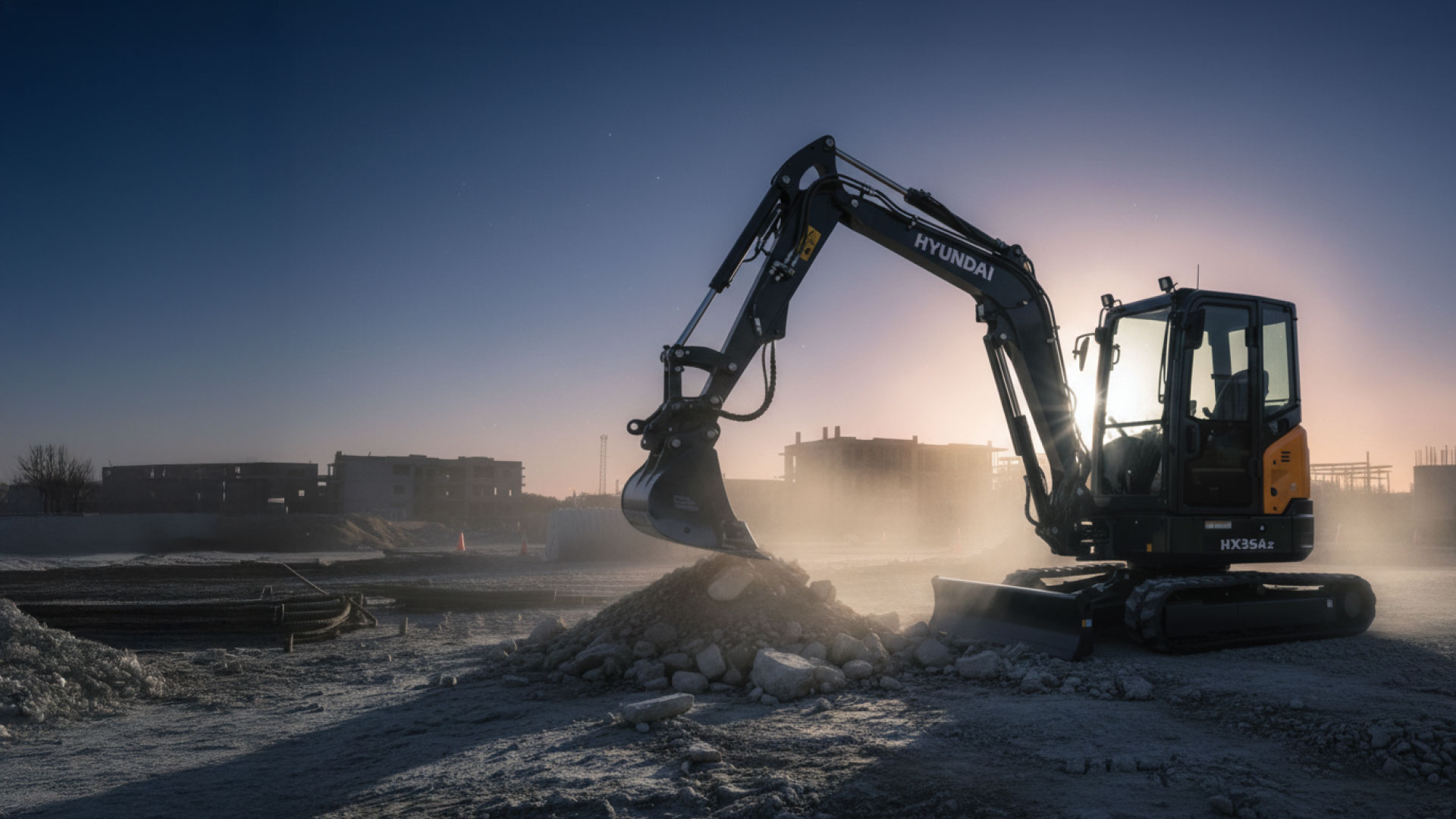

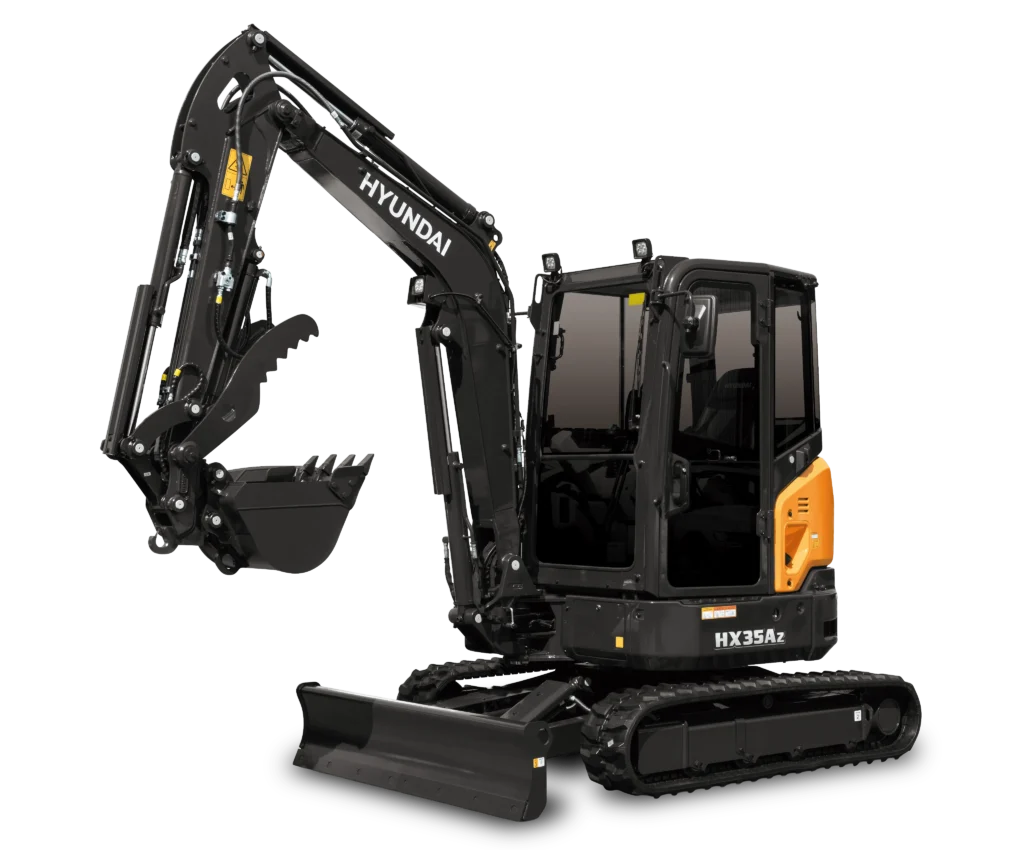

Engineered by Hyundai and supported locally by Al Shirawi Machinery, the HX35AZ represents the next generation of heavy equipment innovation. From its fuel-efficient engine to its precision hydraulics, every component is designed to maximize uptime and productivity. It’s compact construction equipment that brings Hyundai’s global reputation for durability and performance to projects of every scale.
