| Operating Weight | 22 ton |
| Bucket Capacity | 0.87 ~ 1.20 m³ |
| Size | Medium |
| Emission | – |
| Engine model | Hyundai 6BTAA-5.9 |
| Rated Power | 148hp/2000rpm |
| Max. Torque | 64kgf·m/1300rpm |
| Main pumps rated flow | 2 X 234 ℓ/min |
| Implement circuit | 350 kgf/cm2 |
| Fuel tank | 340 ℓ |
| Hydraulic tank | 160 ℓ |
| DEF/ ADBLUE tank | – ℓ |
| Swing speed | 12.2 rpm |
| Travel speed | 5.7 km/h |
| Max. Traction force | 21100 kgf |
| Max. gradeability | 35 deg |
| Bucket Digging Force (ISO) | 15500 kgf |
| Arm Digging Force (ISO) | 10900 kgf |
| Overall length | 9530 mm |
| Overall height | 3030 mm |
| Overall width | 3190 mm |
| Tail swing radius | 2845 mm |
| Tumbler distance | 3650 mm |
| Ground clearance | 470 mm |
| Boom length | 5680 mm |
| Arm length | 2920 mm |
| Max. Digging reach | 9980 mm |
| Max.Digging depth | 6730 mm |
| Max. Digging Height | 9600 mm |
| Max. Dumping Height | 6780 mm |
| Min. Swing radius | 3670 mm |

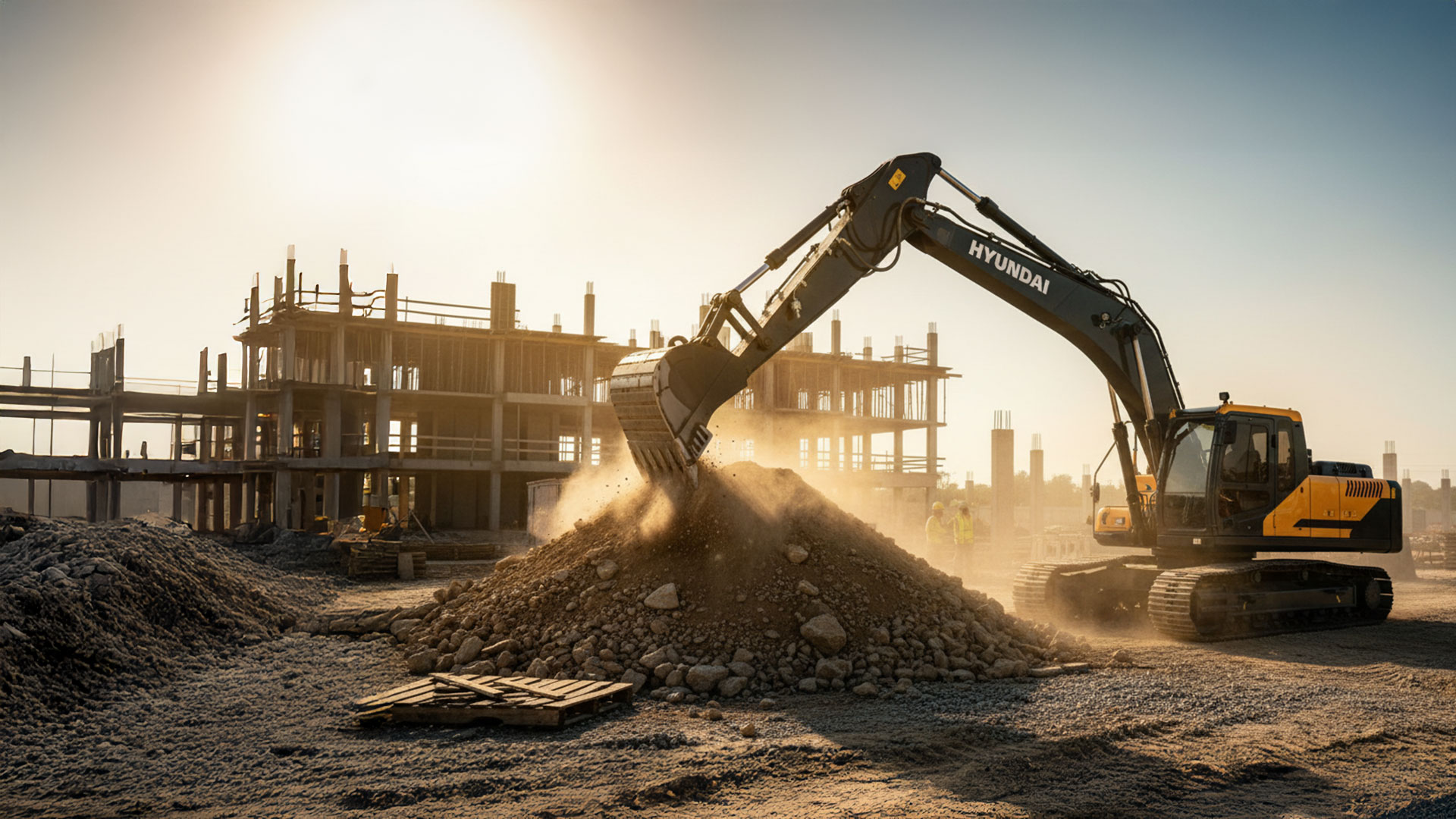

The Hyundai HM5.9 six-cylinder turbocharged diesel engine is built specifically for construction and earthmoving demands. At 148 HP and 64 kgf.m of peak torque, it delivers the continuous digging force that UAE construction sites require across a full working day. The engine’s new Variable Power Control system matches hydraulic output to actual demand, reducing fuel consumption during lighter cycles and releasing full power when penetrating compacted soils or hard fill. Combined with the 340-litre fuel tank, the HX220HD sustains long operating shifts without the refuelling delays that cost projects productive hours.
With a maximum digging reach of 9,980 mm and a 5,680 mm boom paired with a 2,920 mm arm, the HX220HD covers an exceptional working envelope for a 22 ton class excavator. Wider reach means fewer machine repositions per trench run, fewer operator interruptions, and faster daily progress on the linear utility, road, and drainage projects that represent a large share of UAE civil construction work. Less moving around the site translates directly into lower fuel consumption, less track wear, and higher tonnes moved per shift.
A maximum digging depth of 6,730 mm gives the HX220HD genuine capability for the foundation work, deep service trenching, and below-ground infrastructure installation that medium and large-scale UAE building projects demand. Reaching to over 6.7 metres below machine level puts basement foundations, deep drainage sumps, and large-diameter service runs well within the machine’s comfortable operating range, maintaining full control and digging force at depth.
UAE construction sites regularly present compacted granular fill, cemented gravels, and hardpan substrates that demand serious digging force to penetrate cleanly. The HX220HD delivers 15,500 kgf of bucket digging force and 10,900 kgf of arm digging force enough to bite through difficult material conditions cleanly and achieve consistent full-bucket loading even in the hardest ground conditions encountered across Dubai and Abu Dhabi project sites.
The HX220HD’s reinforced X-leg type centre frame and pentagonal box-section track frame are built to absorb the continuous vibration and impact loads common to UAE construction sites rocky substrates, hard fill, and uneven ground that weaken standard undercarriage designs over time. This structural robustness directly extends undercarriage service life, reduces maintenance frequency, and protects the machine’s residual value throughout its working life.
The HX220HD’s wide cab, front and side air conditioning, smooth travel pedals, highly sensitive joystick controls, and improved intelligent display all contribute to an operating environment where operators remain alert, accurate, and productive across the long daily shifts common on UAE construction projects. Lower operator fatigue directly improves site safety, digging precision, and machine cycle efficiency factors that compound in significance across the weeks and months of a major project.
When you compare excavator prices in UAE or search for a 22 ton excavator for sale in Dubai, the dealer standing behind the machine determines the quality of support your project receives long after the delivery truck has left. Al Shirawi Machinery is the exclusive authorised Hyundai Construction Equipment dealer in the UAE. The only company that can offer you a genuine factory-warranted HX220HD with complete UAE after-sales coverage.
Every HX220HD from Al Shirawi is factory-certified, factory-warranted, and supported by Hyundai’s global engineering network. Certified pre-delivery inspection, genuine Hyundai warranty documentation, and direct access to Hyundai technical support are standard on every machine we sell not optional extras.
As the manufacturer’s authorised UAE representative, Al Shirawi provides the most competitive excavator machine price in Dubai and across the Emirates with complete transparency on all costs. Whether you are purchasing a single machine for a specific project or procuring multiple units for a fleet, our sales team provides honest, straightforward pricing with no hidden charges.
Structured payment plans, fleet discount programmes, and project-aligned purchase terms are available for the HX220HD making it accessible whether you are a growing contractor or a large fleet operator renewing heavy equipment across the UAE and GCC.
Critical components, filters, hydraulic parts, bucket teeth, undercarriage items, and engine consumables for the HX220HD are held in stock at our Al Quoz, Dubai Investment Park, and Abu Dhabi branches. When parts are needed, they are available fast protecting your project schedule and keeping your excavator earning its keep.
The Hyundai HX220HD is the crawler excavator UAE contractors across every major industry rely on for sustained, productive medium to heavy earthmoving:
| Requirement | Mini to Compact Excavator (HX60G) | Hyundai HX220HD ✦ Best Option | Large Class Excavator (HX380L) |
|---|---|---|---|
| Operating Weight | 5.85 ton | 22.20 ton | 37.2 ton |
| Engine Output | 48.5 HP | 148 HP | 193 kW / 259 HP |
| Bucket Capacity | 0.25 m³ | 0.87–1.20 m³ | 2.32 m³ |
| Max. Digging Reach | ~5.5 m | 9,980 mm | ~11,000 mm |
| Max. Digging Depth | ~3.5 m | 6,730 mm | ~7,000 mm |
| Bucket Digging Force | ~4,000 kgf | 15,500 kgf | 21,600 kgf |
| Fuel Tank Capacity | ~45 ℓ | 340 ℓ | 600 ℓ |
| Best Application | Urban confined sites | Construction and civil earthmoving | Heavy quarrying and large infrastructure projects |
| Authorised UAE Dealer | ✔ Yes | ✔ Yes | ✔ Yes |
| Warranty | ✔ Yes | ✔ Yes | ✔ Yes |
| Genuine Spare Parts (UAE) | ✔ Genuine Hyundai Parts | ✔ Genuine Hyundai Parts | ✔ Genuine Hyundai Parts |
| After-Sales Support Hotline (UAE) | ✔ 800HDH (800434) | ✔ 800HDH (800434) | ✔ 800HDH (800434) |
The HX60G serves confined urban access work. The HX380L leads on maximum output quarrying and large infrastructure. The HX220HD is the optimal choice for the broadest range of construction, civil, and utility earthmoving applications across the UAE delivering the right balance of reach, depth, digging force, and fuel efficiency for the work that defines most project schedules.
