| Operating Weight | 49.9 ton |
| Bucket Capacity | 1.38 ~ 3.20 m³ |
| Size | Large |
| Emission | TIER 3 |
| Engine model | CUMMINS / X12 |
| Rated Power | 335hp/2100rpm |
| Max. Torque | 170kgf·m/1400rpm |
| Main pumps rated flow | 2 × 394 ℓ/min |
| Implement circuit | 330 kgf/cm2 |
| Fuel tank | 660 ℓ |
| Hydraulic tank | 275 ℓ |
| DEF/ ADBLUE tank | – ℓ |
| Swing speed | 8.8 rpm |
| Travel speed | 5.5 km/h |
| Max. Traction force | 39674 kgf |
| Max. gradeability | 35 deg |
| Bucket Digging Force (ISO) | 25200 kgf |
| Arm Digging Force (ISO) | 20900 kgf |
| Overall length | 12160 mm |
| Overall height | 3850 mm |
| Overall width | 3540 mm |
| Tail swing radius | 3800 mm |
| Tumbler distance | 4470 mm |
| Ground clearance | 1370 mm |
| Boom length | 7060 mm |
| Arm length | 3380 mm |
| Max. Digging reach | 12060 mm |
| Max.Digging depth | 7730 mm |
| Max. Digging Height | 11060 mm |
| Max. Dumping Height | 7710 mm |
| Min. Swing radius | 4870 mm |

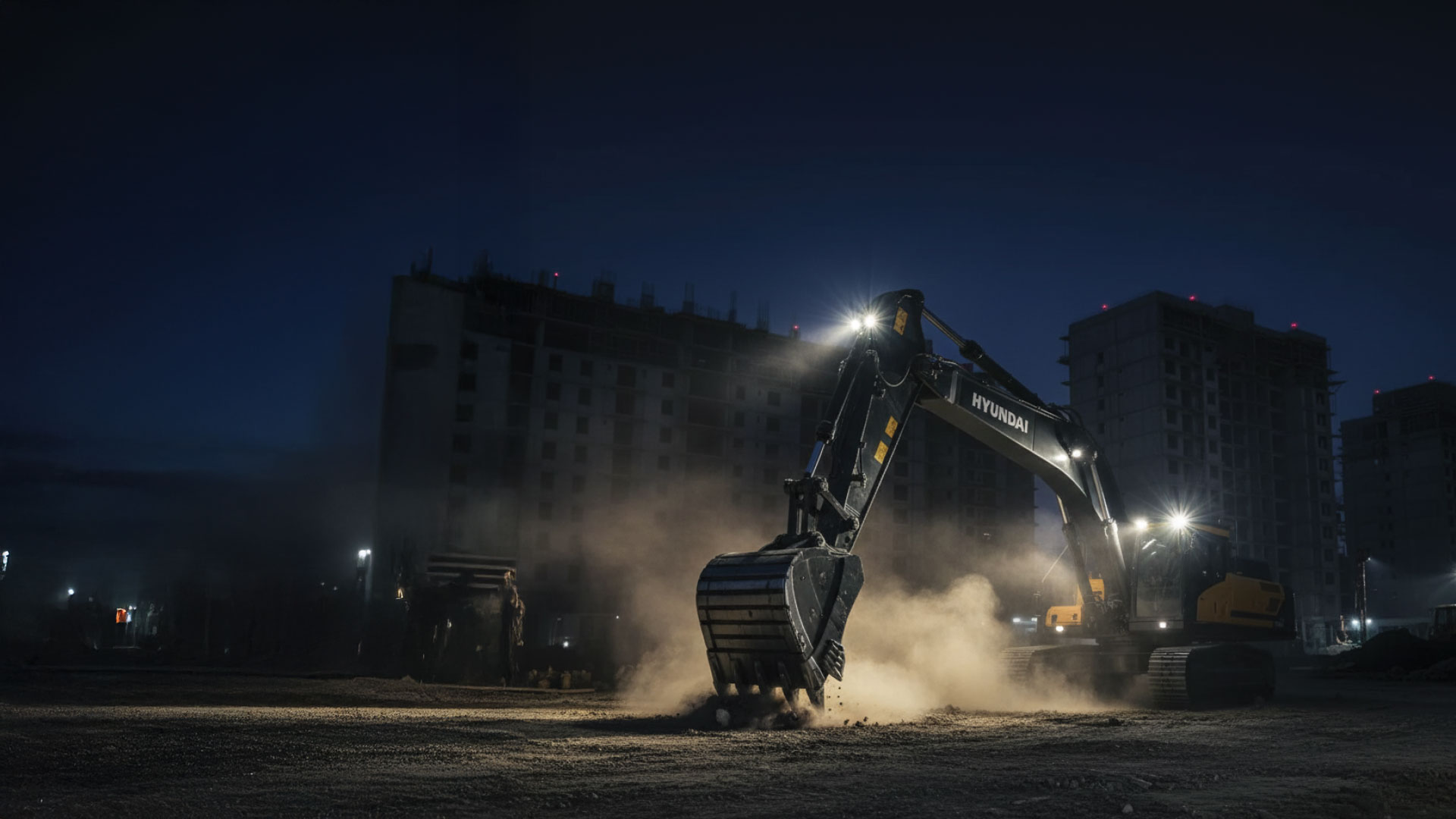

When the job calls for maximum strength and endurance, the Hyundai HX500L answers without hesitation. Designed for large-scale construction and mining operations, it channels immense hydraulic power through a reinforced frame for steady, high-output performance. Every component; from its advanced control system to its efficient engine, is engineered to last. With Al Shirawi Machinery providing expert service and genuine Hyundai parts, the HX500L keeps your operation productive no matter how tough the terrain.
