| Operating Weight | 24.6 ton |
| Bucket Capacity | 4.5 m³ |
| Backhoe Bucket Capacity | – m^3 |
| Loader Bucket Capacity | – m^3 |
| Operating capacity | – kg |
| Engine model | QSM11 |
| Travel speed | 39 km/h |
| Tipping load | 20000 kg |
| Overall Length | 9210 mm |
| Overall Width | 3300 mm |
| Overall Height | 6005 mm |
| Wheelbase | 3520 mm |
| Ground clearance | 443 mm |
| Tires | 26.5R25 L3 ★★ |
| Emission | TIER 3 |
| Rated Power | 335hp/2100rpm |
| Emission | TIER 3 |
| Engine model | QSM11 |
| Rated Power | 335hp/2100rpm |
| Max. Torque | 170.7kgf·m/1400rpm |
| Breakout force | 21820 kgf |
| Static Tipping Load (Staight) | 19840 kg |
| Static Tipping Load (Full-Turn) | 17240 kg |
| Bucket Pin Hinge Height(Raise) | 6005 mm |
| Front Speed (Raise) | 5.4 sec |
| Front Speed (Lower) | 3.4 sec |
| Front Speed (Dump) | 1.5 sec |
| Overall Length | 9210 mm |
| Overall Width | 3300 mm |
| Overall Height | 6005 mm |
| Wheelbase | 3520 mm |
| Ground clearance | 443 mm |
| Tires | 26.5R25 L3 ★★ |
| Transport Length | – mm |
| Transport Height | – mm |
| Transport Width | – mm |
| Front Tires | – |
| Rear Tires | – |

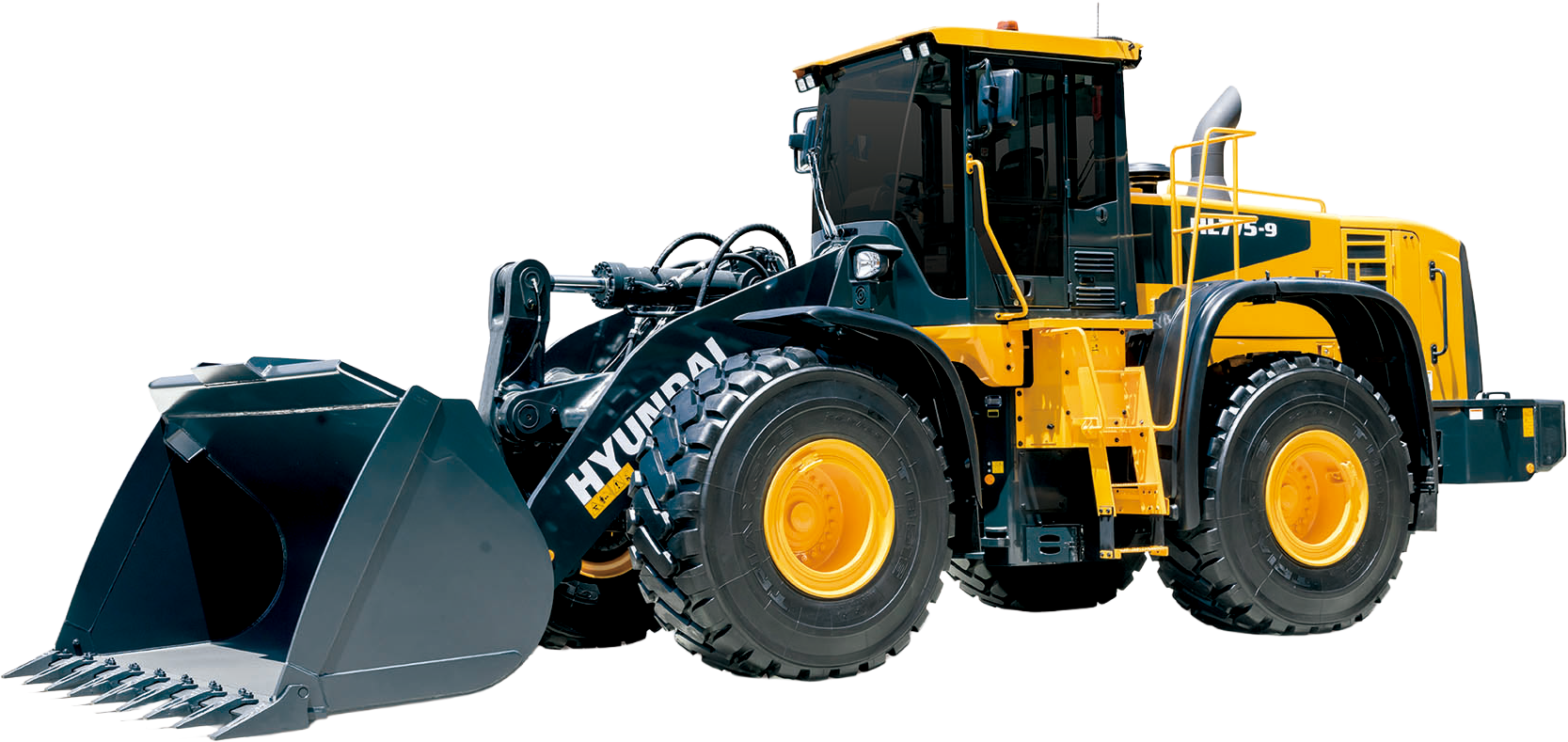

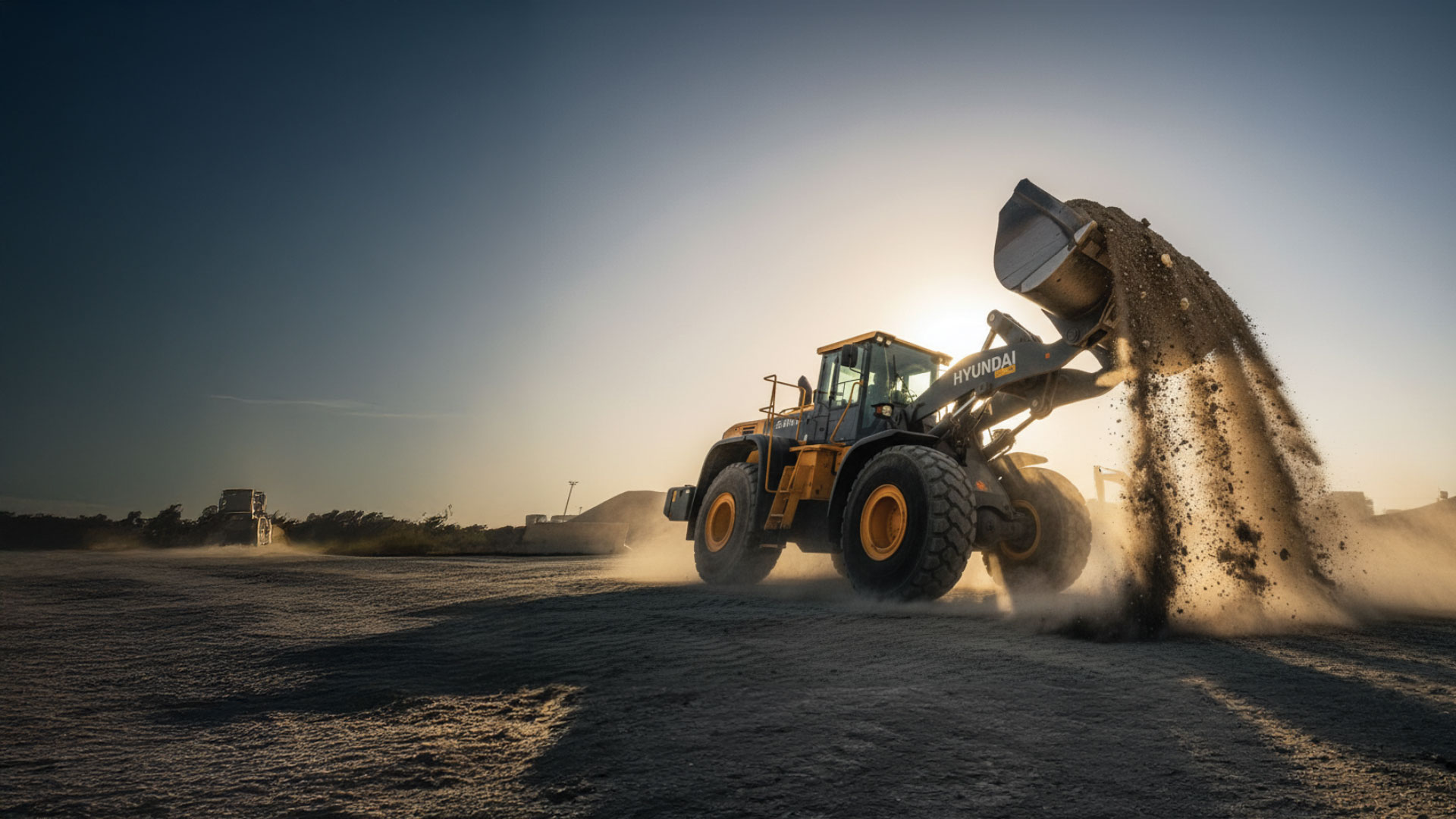

From large-scale infrastructure to quarry and mining operations, the Hyundai HL775-9 Wheel Loader delivers the muscle and reliability professionals expect from premium heavy equipment. Supported by Al Shirawi Machinery’s dedicated after-sales team, maintenance solutions, and genuine Hyundai parts, it keeps your business moving efficiently and safely. Powerful, dependable, and built for tough construction equipment UAE environments; it’s the loader that works as hard as you do.
