Large infrastructure and earthmoving projects don’t leave room for equipment that’s undersized for the job. When a site demands serious digging depth, high bucket capacity, and the stability to handle heavy loads all day, a 40 ton excavator class machine is often where contractors land; but it’s worth understanding exactly why, and when a machine in this class is genuinely the right call.
Excavators in this weight class are built for high-output earthmoving, deep excavation, and heavy lifting on large-scale sites. In the Hyundai range available through Al Shirawi Machinery, the R430LC sits closely in this class at 42.6 tonnes operating weight, with 296hp and a 1.9 m³ bucket capacity; built specifically for large excavation and infrastructure work.

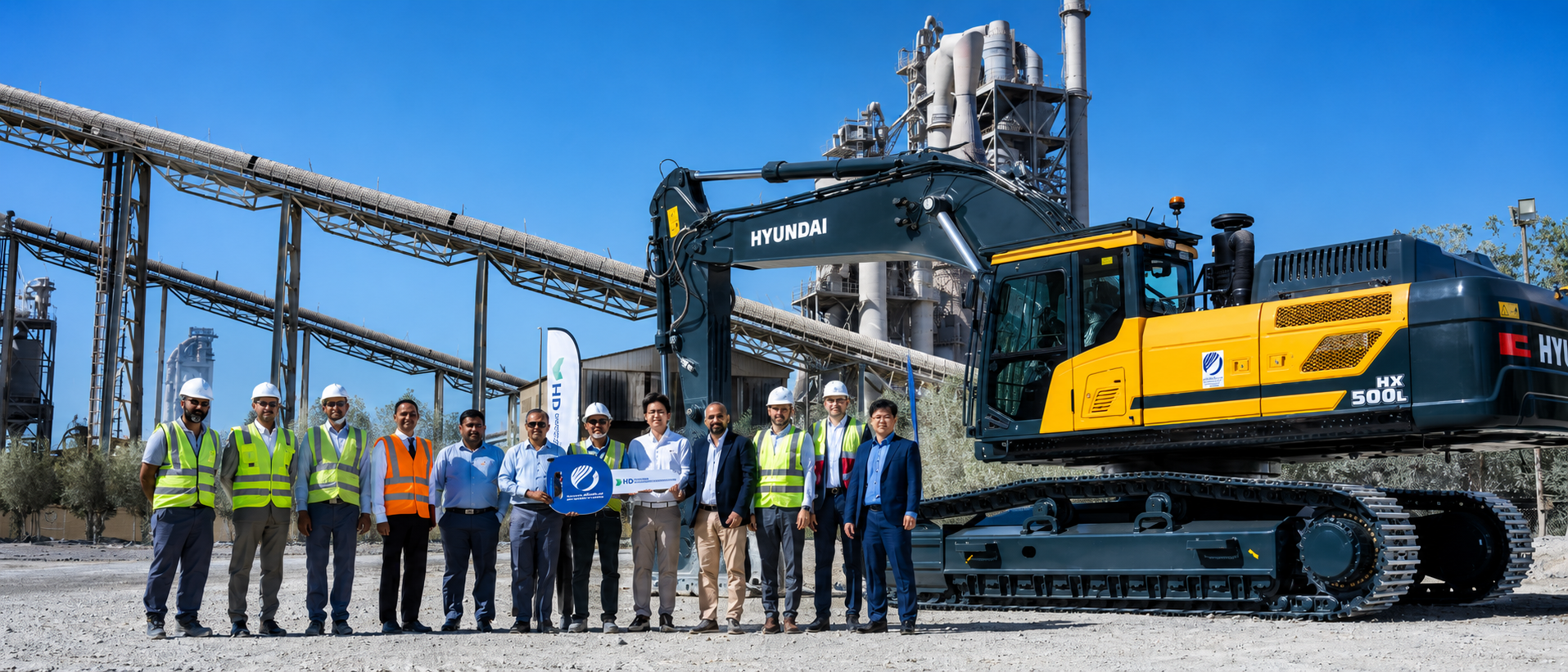

For projects needing even greater capacity, the HX500L steps up further, at 49.9 tonnes operating weight and 335hp, supporting heavy construction and mining operations where digging volume and reach are critical.
A 40 ton class excavator is typically the right choice when a project involves:
If your project doesn’t demand this scale of output, a machine in this class can be inefficient to run and harder to manoeuvre than necessary. Smaller crawler excavators in Al Shirawi’s range, such as the HX360L or HX380L, may be a better fit for mid-size construction work.
| Model | Operating weight | Rated power | Bucket capacity | Best suited to |
| R430LC | 42.6 ton | 296 hp | 1.9 m³ | Large excavation, infrastructure |
| HX500L | 49.9 ton | 335 hp | 1.38–3.20 m³ | Heavy construction, mining |
| HX800L | 81.6 ton | 474.7 hp | 3.4–5.2 m³ | Mining, large-scale earthmoving |
This comparison highlights something worth considering before committing to any single spec: the ‘right’ large excavator depends on exactly how heavy and continuous your workload is, not just a general sense that ‘bigger is better.’
Larger excavators need adequate space for manoeuvring and transport. Confirm site access can accommodate the machine before committing.
Heavier machines require appropriate transport arrangements, a factor worth planning into your project timeline.
Larger engines consume more fuel; the productivity gain needs to justify that running cost for your specific project scale.
Large excavators represent a significant investment, so servicing, genuine parts availability, and maintenance contract options become even more important than on smaller equipment.
Beyond the Purchase: What Happens After You Buy
A 40 ton excavator is a serious commitment, both financially and operationally — but for genuinely large-scale construction and infrastructure work, it’s often the machine that keeps a project on schedule where smaller equipment would struggle with volume and depth requirements.
Al Shirawi Machinery, as the authorised Hyundai dealer in the UAE, can help assess whether a machine like the R430LC or HX500L suits your project scale, backed by genuine parts and manufacturer-trained servicing to keep large equipment running at maximum uptime.
Contact Al Shirawi Machinery
Email: marketing.asm@alshirawi.ae
For after-sales support, genuine parts, or service enquiries:
Call Tollfree: 800HDH – 800434
Large-scale earthmoving, deep excavation, infrastructure projects, and heavy material handling where high digging force and bucket capacity are needed.
For general or mid-size construction, a smaller crawler excavator is often more practical and cost-efficient. This class suits genuinely large-scale or heavy-duty projects.
The R430LC sits at 42.6 tonnes with a 1.9 m³ bucket, suited to large excavation and infrastructure work, while the heavier HX500L at 49.9 tonnes offers greater bucket capacity for heavy construction and mining applications.
Yes, Al Shirawi Machinery offers rental options for select heavy equipment, which can be a practical choice for project-specific or shorter-term needs.
Running costs are higher due to fuel consumption and maintenance scale, but this is typically offset by significantly higher output on large projects.
Al Shirawi Machinery provides manufacturer-backed servicing, genuine Hyundai spare parts, and maintenance contract options for all excavator classes, including large machinery.
